F150 HAMR Long Travel Kit

Presale sale going on now! Save now on the biggest baddest kit on the market! Use discount code hamr to save $1000!

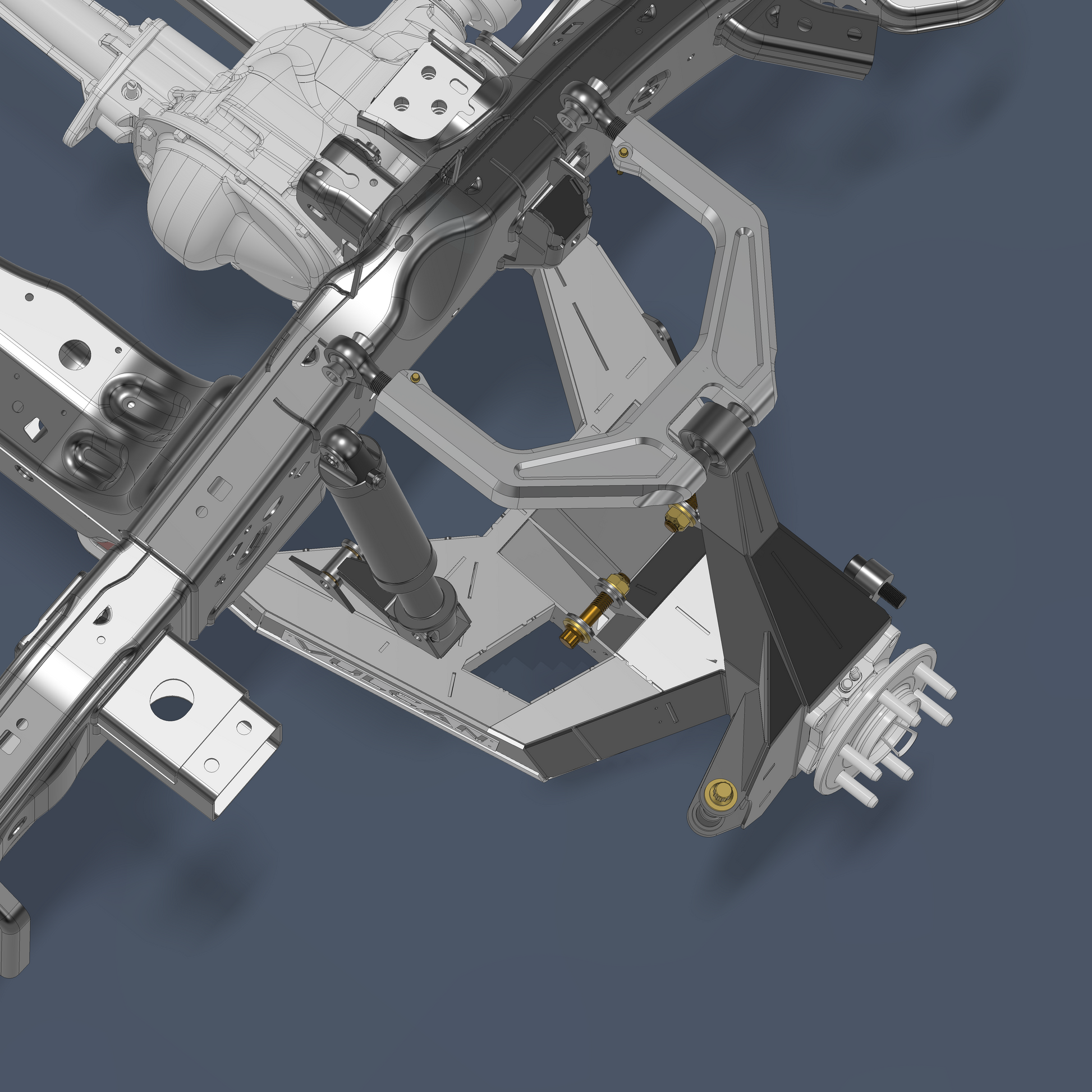

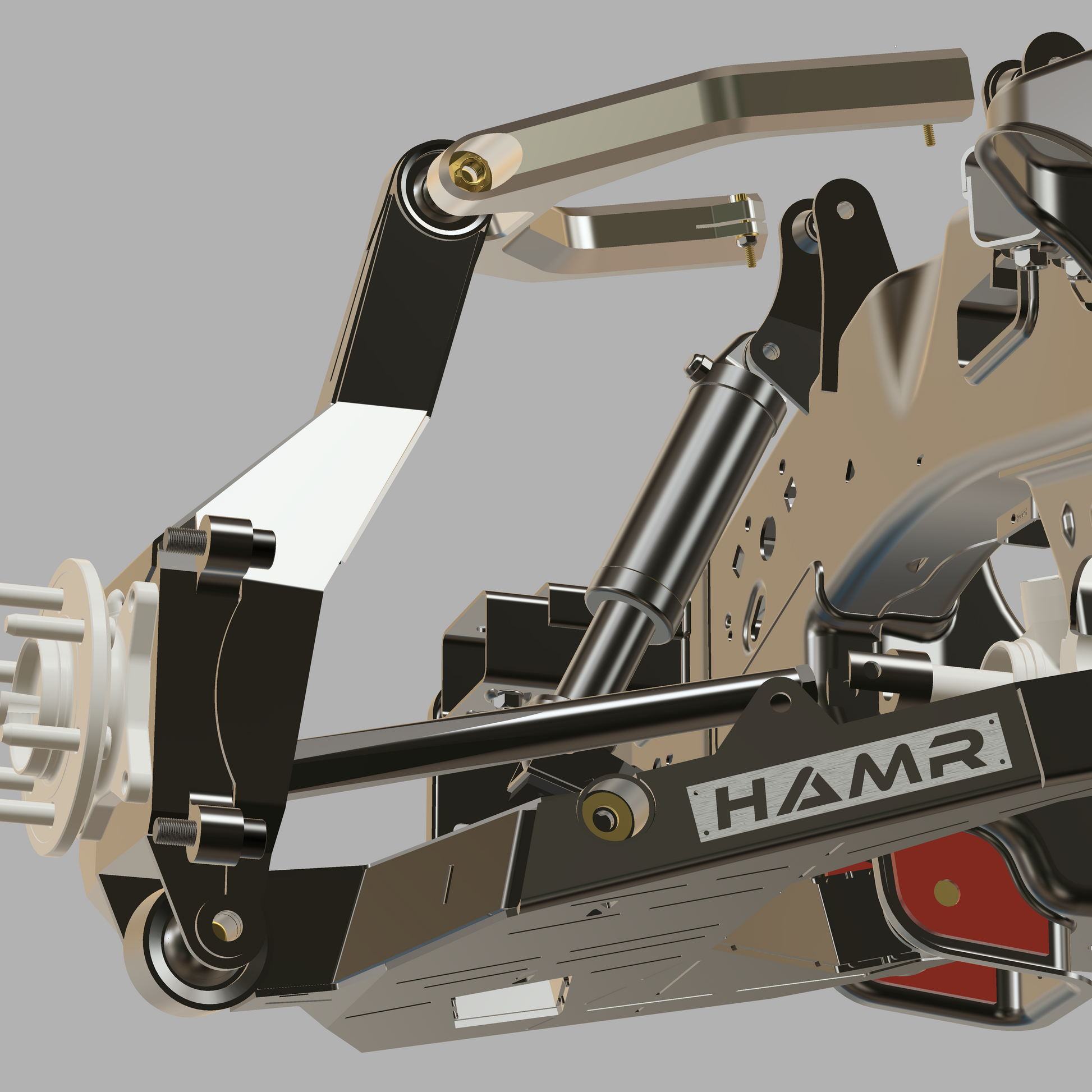

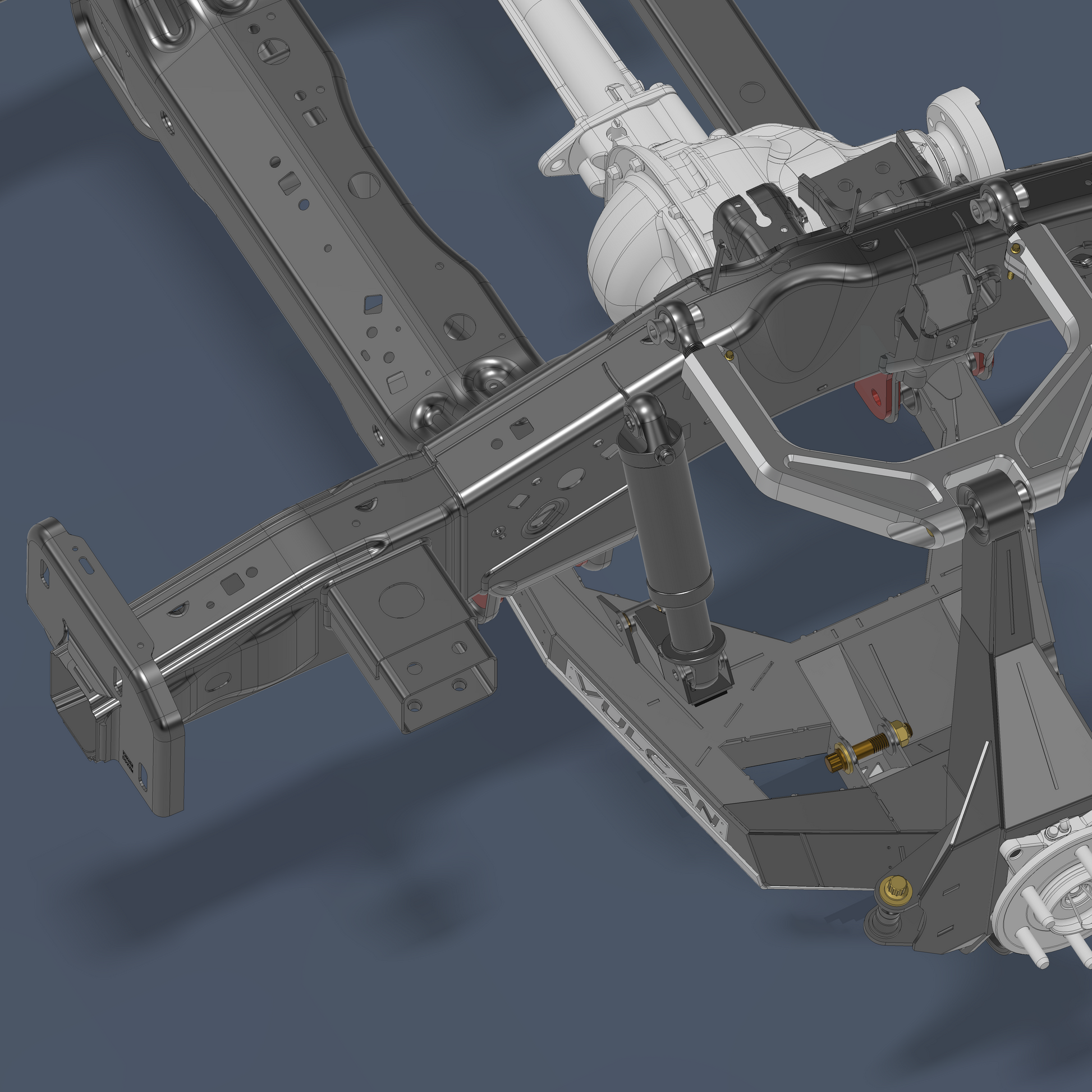

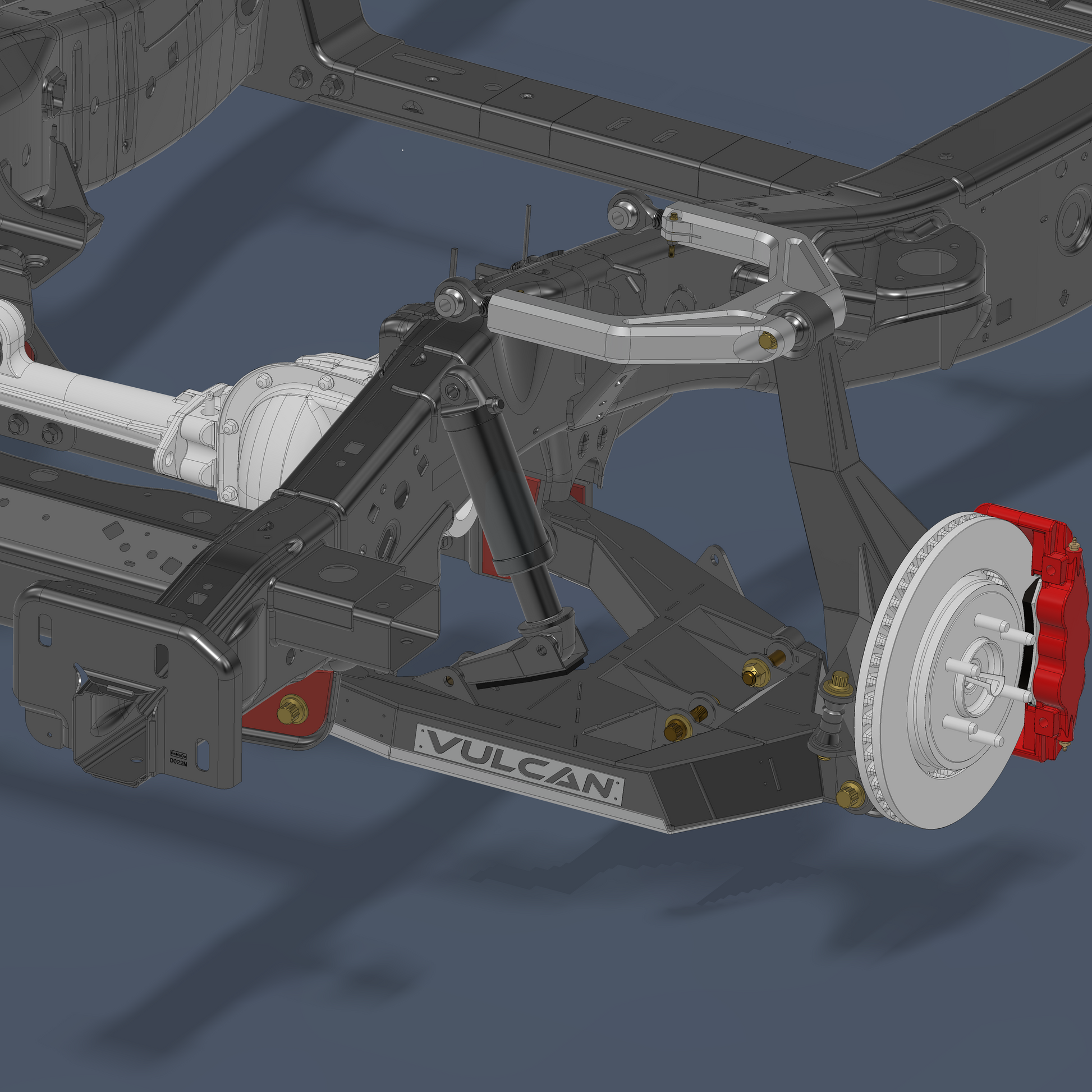

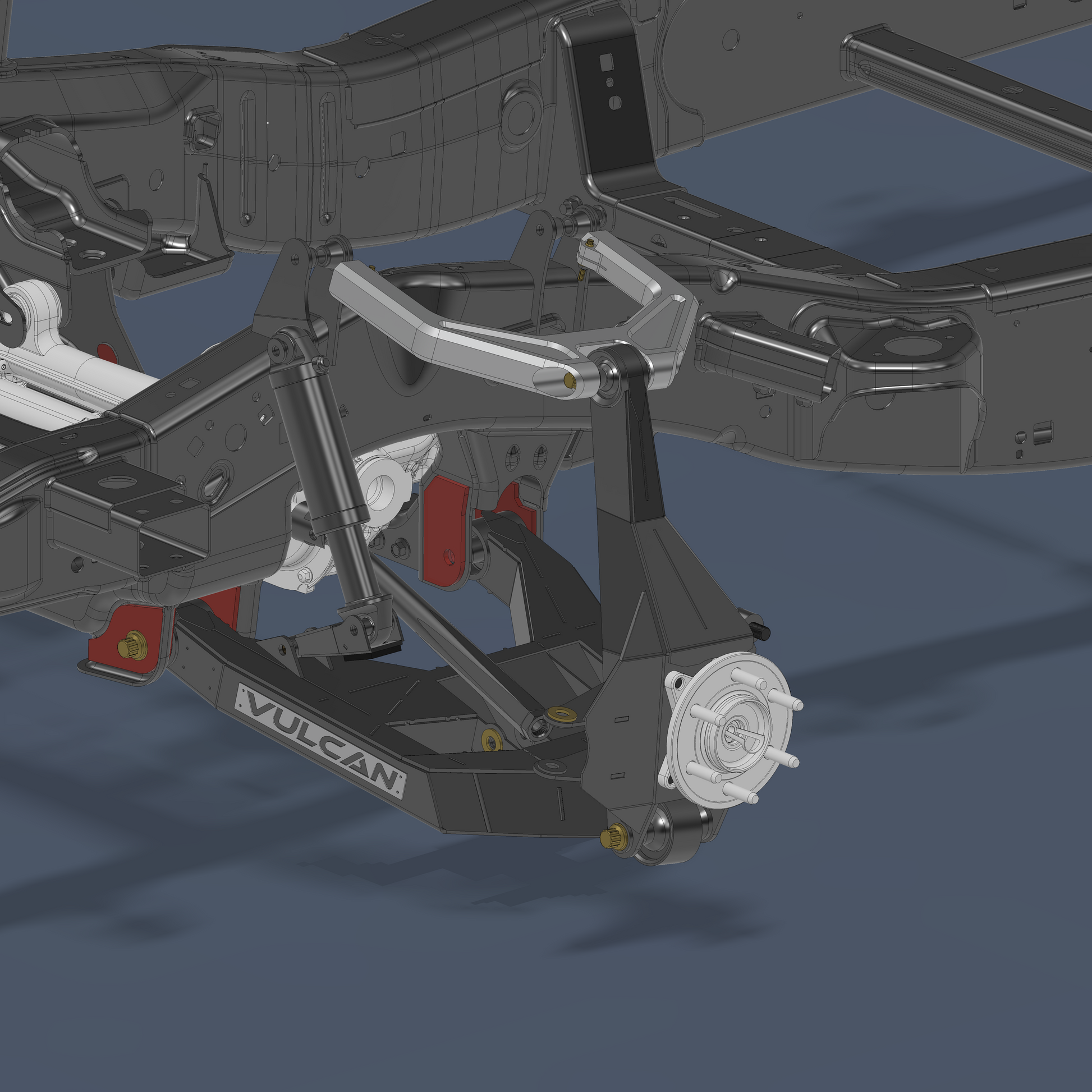

Vulcan HAMR long travel kit for F150 / Raptor.

Upper Arm

• 5 axis CNC billet 6061 aluminum
• Removes OE shock bucket
• Relocates upper arm pivot
• Larger arm to allow shock package inside upper arm

Upright:

• 2 inch billet face plate
• 4130 chromoly plate work
• TIG welded

Lower Arms

• 4130 chromoly plate work
• TIG welded

• 1 inch inner uniballs and 1.5 outer uniballs (no bushings)
• Fully trussed inner support
• Optioned with or without slapper arm tabs

Steering:

• Billet aluminum tie rods
• Billet OE rack to heim steering adapter
• JMX heims

Bearings:

• FK JMX heims
• FK COM/ WSS uniballs
• 17-4 stainless spacers

Hardware

• Standard with grade 8 hardware with stover locknuts
• Optional with shanked 12 point hardware with L9 locknuts - grade 9

Geometry

• Replaces OE geometry to allow for better handling
  • Improved caster
  • Improved camber curve
  • Improved ackermann characteristics
  • Improved IC / KPI

Your kit:

• Each kit comes serialized and with your name laser cut into the lower arm
• Custom coating / anodize colors to make the kit yours

Kit includes:

• Billet upper arms
• Lower arm
• Upright
• Billet tie rods
• Heim steering adapter
• Upper arm tabs
• Upper arm tab locator
• Hardware

Recommended options:

• RCV axles
• Slapper arm
• Frame slot delete kit

• Vulcan F150 6x5.5 hubs
• 12 point hardware upgrade

Required options:

• Wilwood big brake kit
